Merge WiFi Mount

Name: Merge WiFi Mount
Brand: Merge WiFi
Price: 799.00 USD
Availability: OutOfStock

$799.00 USD

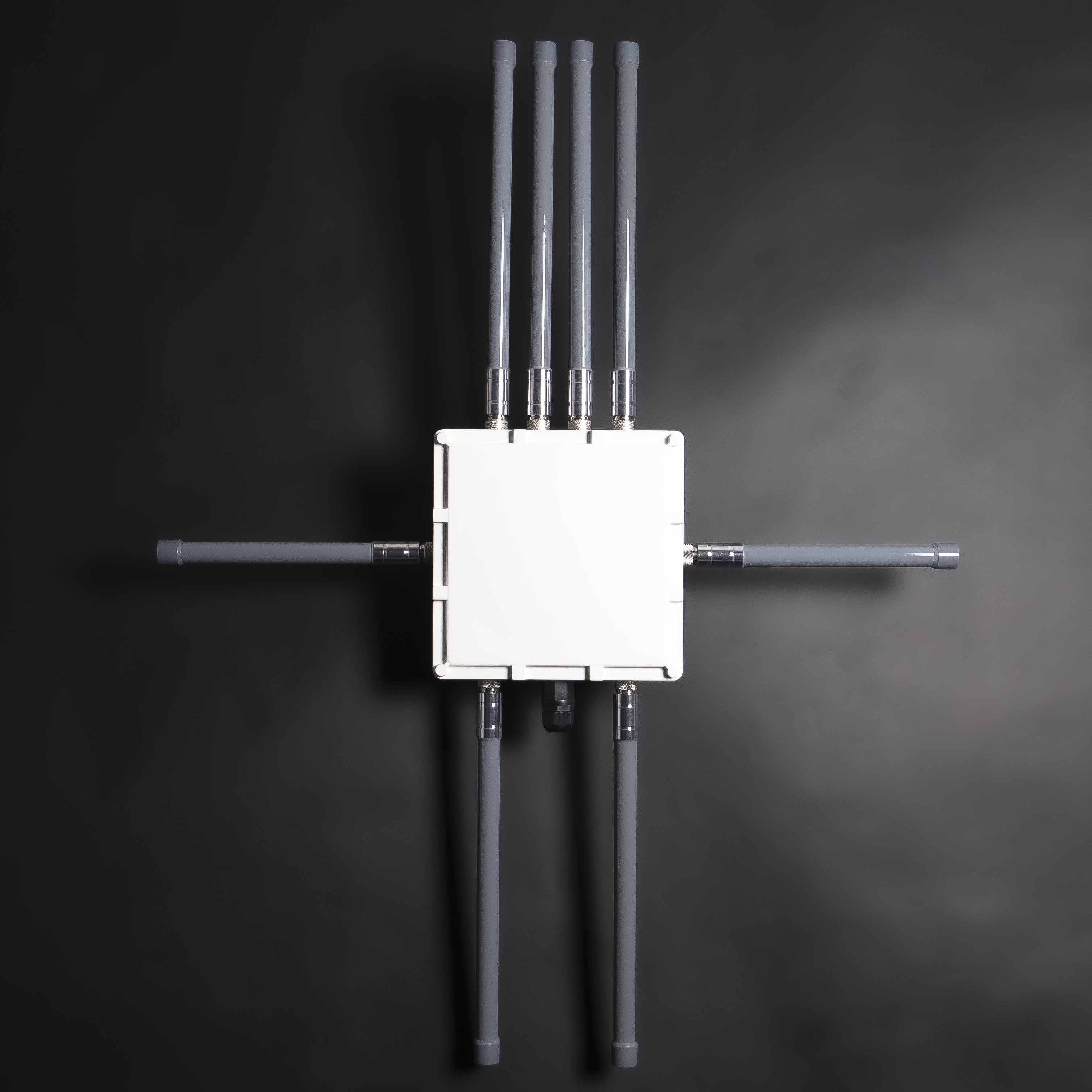

Stay connected anywhere with the Merge WiFi Mount! A rugged, industrial-grade solution built for the toughest environments. Designed with IP66 weatherproof protection and powered by the Qualcomm® Snapdragon™ X55 modem, this router automatically connects to the strongest available carrier for fast, reliable coverage.

Perfect for remote sites, security cameras, oil fields, smart agriculture, and critical infrastructure, it delivers:

Blazing fast 5G/4G speeds up to 2.5Gbps
Dual-band WiFi for 500+ devices
Cloud-based remote management for complete visibility and control
Durability you can trust, tested against water, corrosion, and extreme weather

Whether it’s rain, heat, or remote challenges, the Merge WiFi Mount keeps your network always on, always reliable.

Multi-Carrier 5G/4G Selection – automatically connects to the strongest available carrier at power-on

Industrial-Grade Weatherproof Housing – IP66-rated aluminum alloy enclosure; waterproof, corrosion-proof, and UV-protected

High-Performance WiFi – dual-band 802.11ac with speeds up to 1200Mbps and support for 500+ connections

Extended Cellular Support – Qualcomm® Snapdragon™ X55 modem with global 5G SA/NSA and extensive LTE band coverage

Strong & Reliable Antennas – includes 5 external N-type industrial-grade WiFi antennas (8dBi fiberglass, high-gain)

Cloud Management Platform – remotely manage deployment, SIMs, VPN, diagnostics, updates, and more via IQMC Command

Rugged & Endurance Tested – salt spray and percolation tested to withstand harsh outdoor environments

WiFi Made Easy

1 Buy a Router

2 Activate Your Plan

3 Connect to WiFi

Enclosure & Durability

All-metal lightweight aluminum alloy, diecast under 100-ton pressure
Explosion-proof, waterproof (IP66), and corrosion-proof
Rubber gasket seals prevent water intrusion
White UV-resistant coating
Tested for salt spray and percolation endurance

Connectivity

4G/5G mobile network connection with APN support
Gigabit Ethernet LAN/WAN ports
Dual-band WiFi (2.4GHz & 5GHz)

WiFi Performance

Standards: IEEE 802.11a/b/g/n/ac
Speeds: Up to 1200Mbps total2.4GHz: 300Mbps5GHz: 900Mbps
Connections: Supports 500+ clients
Antennas: 5 × external N-Type industrial-grade connectors
High-gain 8dBi fiberglass antennas
Supports 1024-QAM / OFDMA modulation

Cellular Network Support

5G

Modem: Qualcomm® Snapdragon™ X55 RF System
Modes: SA (Standalone) & NSA (Non-Standalone)
Standards: 3GPP Release 15
Transmission speeds:SA: Up to 2.1Gbps down / 900Mbps upNSA: Up to 2.5Gbps down / 650Mbps up
Bands supported (SA & NSA):
n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79
MIMO support:Downlink: 4x4 on most bandsUplink: 2x2 on n41

4G/LTE

Category: Down Cat 16 / Up Cat 18
LTE-FDD Bands: B1–B71 (wide global coverage)
LTE-TDD Bands: B34/B38/B39/B40/B41/B42/B43/B48
LTE LAA: B46 (2x2 MIMO)
4x4 MIMO supported on multiple LTE bands
WCDMA: B1/B2/B3/B4/B5/B6/B8/B19
LTE Speeds: 1.0Gbps down / 200Mbps up

Hardware & Interfaces

CPU: MediaTek MT7621
Memory: 16MB Flash + 256MB DDR3
Ports:1 × 1Gbps WAN2 × 1Gbps LAN1 × Gigabit POE (48V)
Expansion: 1 × SIM slot, 1 × MiniPCIe, 1 × M.2, 1 × SD Card slot
LED Indicators: Power, 4G/5G status, 2.4GHz, 5GHz
Reset: Long-press reset button (restore factory defaults)

Software Features

IPv4 / IPv6 dual stack
Firewall, MAC filtering & WiFi security
VPN passthrough and VPN client (L2TP, PPTP)
Smart QoS & parental controls
UPNP, DDNS, DMZ, APN support
Remote management via IQMC Command CloudData plan control, location tracking, VPN setup, firmware updates
